Industrial LV Switchboards NZ

Custom industrial low-voltage switchboards built in our ISO 9001-certified Invercargill workshop, designed and verified to AS/NZS 61439. Main switchboards, motor control centres, mechanical services switchboards, and lighting and power distribution boards across NZ industrial, infrastructure, and commercial procurement. Engineered to your single-line diagram, fault level, and site conditions, then built and factory-acceptance-tested before nationwide delivery.

Switchboard Capability

Up to 8,000A: full main switchboard range
Four OEM platforms: Schneider Prisma Plus G, Simotrol, Logstrup, Quantum
Form 1 to 4b: internal separation to project specification
AS/NZS 61439: designed and verified, full compliance pack with every project
ISO 9001 certified QMS: audited annually since 1995
Nationwide delivery: built and FAT-tested in Invercargill

Decorative black dot grid pattern background for Clive Wilson Switchboards website

Interior of an open electrical switchboard enclosure showing busbars and circuit breakers during assembly at Clive Wilson Switchboards

Main Switchboards

Custom MSBs from 250A to 8,000A

Industrial Main Switchboards Built to AS/NZS 61439

Custom main switchboards from 250A to 8,000A built on Simotrol, Schneider Prisma Plus G, and Logstrup platforms. Designed and verified to AS/NZS 61439 with full compliance documentation provided.

Up to 8,000A: full industrial range across four OEM platforms
Form 3b or 4a separation: project-specific internal segregation
ARC flash mitigation: where the project specifies internal arc rating
ATS changeover, bus coupling, generator integration: full backup-power schemes
Powder coat any colour: in-house finishing, most colours available

Built for industrial sites, infrastructure projects, and large commercial buildings. Engineered to your single-line diagram, fault level, and site conditions.

View Main Switchboards →

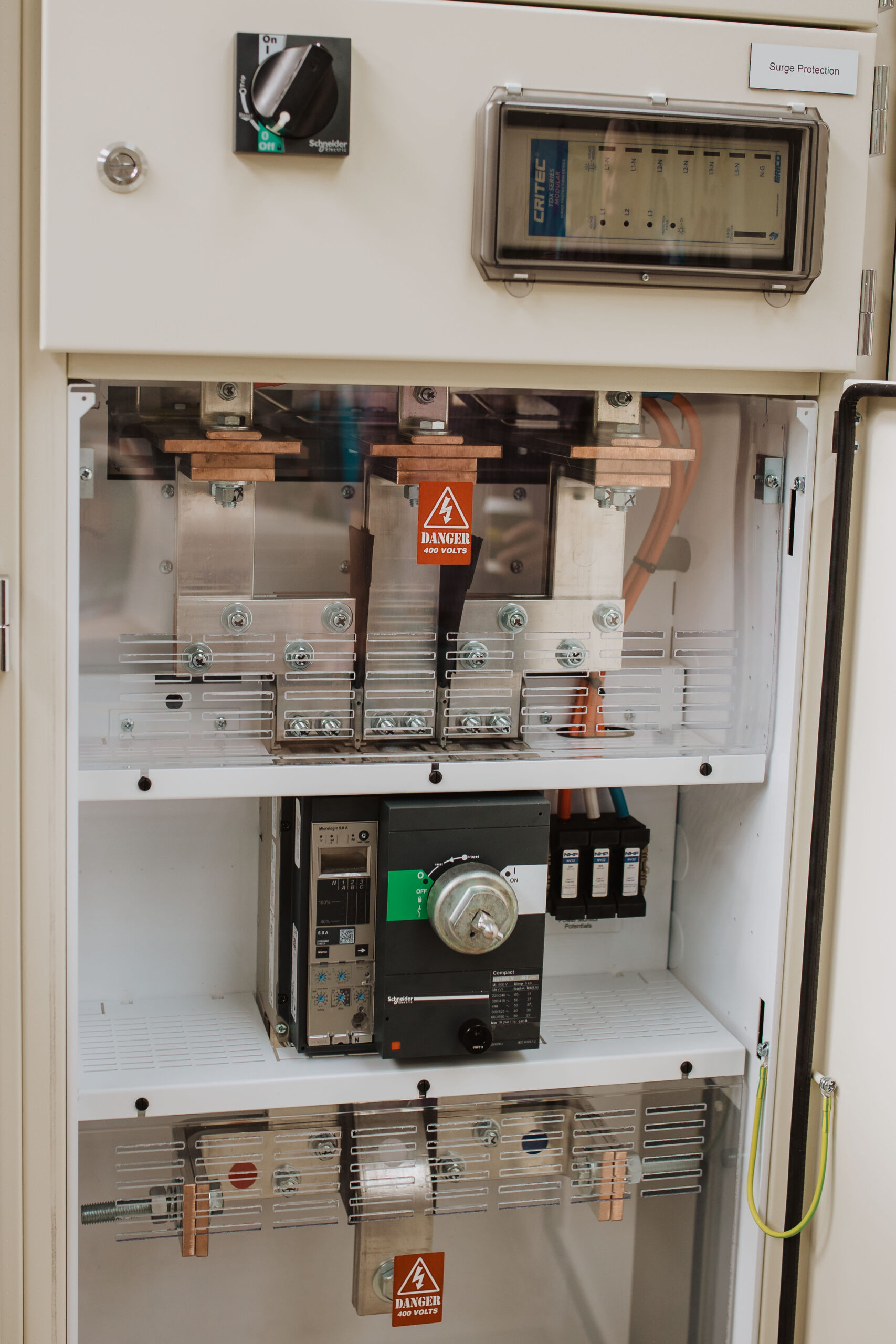

Switchboard panel with Schneider Electric main switch and Critec surge protection device installed by Clive Wilson Switchboards Invercargill

Motor Control Centres

Purpose-Built MCCs from 63A to 3,200A

Motor Control Centres for Industrial Plant

Purpose-built MCCs from 63A to 3,200A on Simotrol and Logstrup platforms. Form 3b or 4a separation, withdrawable starters, full VSD integration, and PLC/SCADA interface as standard.

Withdrawable starter buckets: hot-swap maintenance without de-energising the bus
DOL, soft-start, and VSD options: matched to motor duty and starting characteristics
PLC and SCADA integration: Modbus, Profibus, or hardwired control as required
Full type-test envelope: short-circuit withstand, internal arc, rise-of-temperature
IP41 to IP55: indoor switchroom or wash-down LCP variants

Built for dairy, water and wastewater, freezing works, pump stations, and heavy industry. Designed and verified to AS/NZS 61439.

View Motor Control Centres →

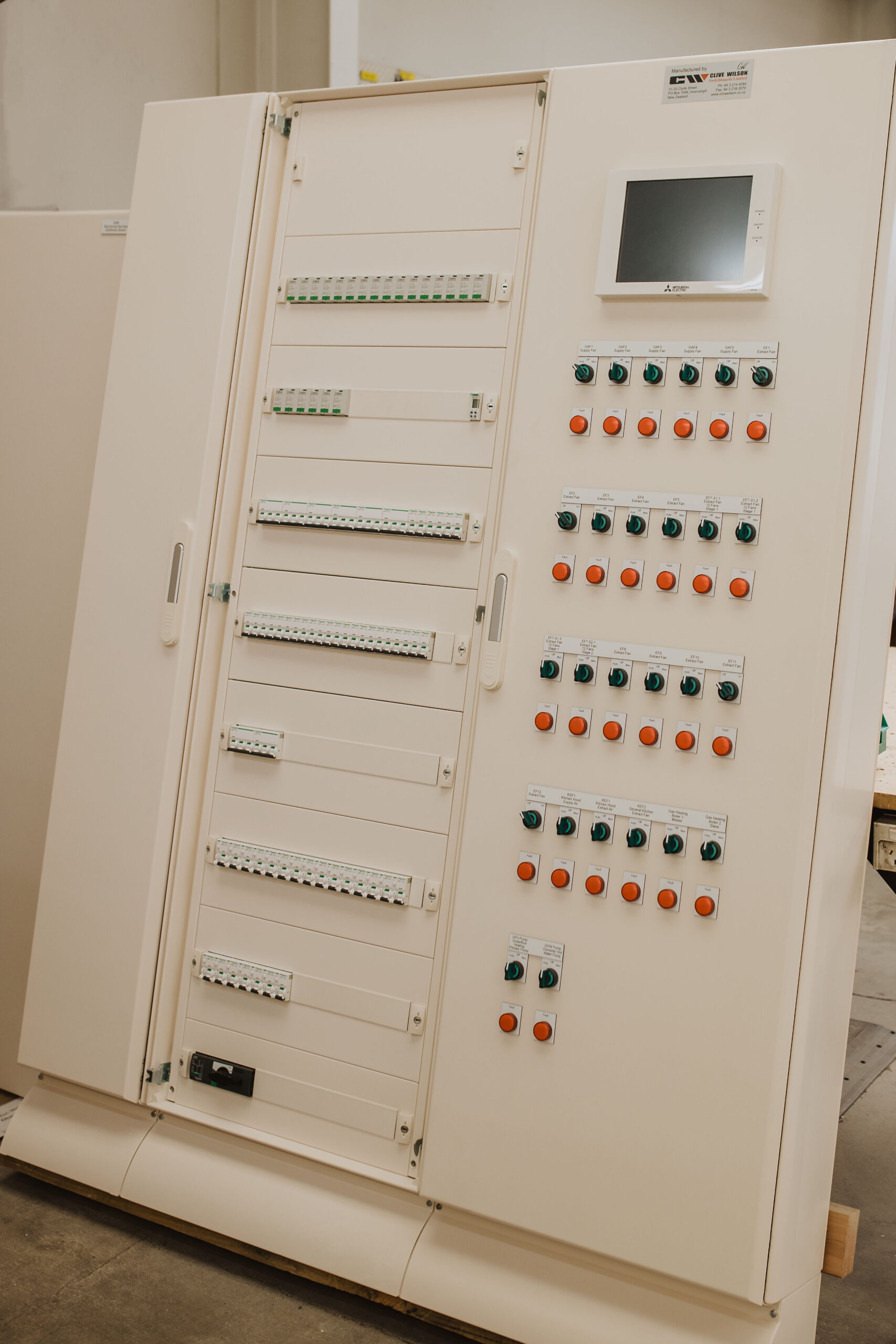

Electrical consulting and switchboard design, in-house engineering team at Clive Wilson Switchboards

Mechanical Services

MSSBs for HVAC and Building Services

Mechanical Services Switchboards for Commercial Buildings

MSSBs for HVAC, pumping, and building management systems. BMS-ready with Modbus, BACnet, and SCADA interfaces. Designed and verified to AS/NZS 61439.

HVAC and chiller plant control: VSD-driven fans and pumps with BMS integration
Domestic and fire pump switchgear: dedicated MSSB for life-safety services
BMS and SCADA-ready: Modbus, BACnet, and hardwired interfaces
Energy metering and trending: Modbus-connected meters for sub-billing
Compact and switchroom variants: floor-standing or wall-mounted as the site dictates

Built for offices, hospitals, schools, and commercial property where mechanical services need their own dedicated switchgear separate from the main electrical distribution.

View MSSBs →

Electrician assembling and wiring a switchboard panel with DIN rail mounting at Clive Wilson Switchboards workshop

Distribution Boards

Schneider Prisma Plus G up to 630A

Lighting and Power Distribution Boards

Lighting and power distribution boards built on Schneider Prisma Plus G as an accredited builder. Up to 630A. IP30 to IP55 enclosure options. Designed and verified to AS/NZS 61439.

Schneider Prisma Plus G: current-generation type-tested platform
Schneider Acti9 modular protection: matched MCBs, RCBOs, and surge protection
Up to 630A: distribution and small commercial main switchboard duty
Form 1 to Form 4a: internal separation to project specification
Wall-mount or floor-standing: indoor enclosure ratings IP30 to IP55

Sit downstream of the main switchboard, feeding lighting, small power, and HVAC sub-distribution. Multi-tenant configurations available with isolated, metered tenant boards in a common switchroom.

View Distribution Boards → · Why Prisma Plus G →

Why Clive Wilson

Why Industrial NZ Specifies CWS for Switchboards

Specifiers and procurement teams pick Clive Wilson because the switchboard arrives on site with the documentation, compliance pack, and engineering integrity that procurement audits expect. We have been building industrial LV switchboards in Invercargill since 1971.

50+ Years in Invercargill

Family-owned switchboard manufacturer since 1971. Most of our team has decade-plus tenure, and senior staff have 30+ year careers on the workshop floor.

ISO 9001-Certified QMS

Audited annually since 1995. Every drawing reviewed, every torque logged, every routine test signed off by a registered electrician.

AS/NZS 61439 Verified

Designed and verified to the mandatory NZ standard. Full compliance pack delivered with every project: type-test certificates, fault calculations, segregation photos, routine verification.

Four OEM Platforms

Schneider Prisma Plus G accredited builder, Simotrol primary platform, Logstrup for higher-rated work, Quantum for custom enclosures. Platform selection is duty-led.

FAT Witness Programme

Operator and consulting engineer attendance at our Invercargill workshop before delivery. Functional verification before the board ships reduces site commissioning risk.

Nationwide Delivery

Built and FAT-tested in Invercargill, then delivered nationwide. Remote-site freight, oversize permits, and on-site offload coordination handled in-house.

Common Questions

Switchboard Buyer FAQs

The questions specifiers and procurement teams ask first. For the full list see our switchboard FAQs page.

How long does a typical switchboard take to manufacture?

Typical lead time is 8 to 16 weeks from engineering sign-off to factory acceptance test, depending on size and platform. Distribution boards on Schneider Prisma Plus G run 8 to 12 weeks. Mid-size MSBs and motor control centres on Simotrol run 10 to 16 weeks. Larger MSBs on Logstrup at 4,000A and above run 16 to 20 weeks. Custom Quantum work runs 14 to 22 weeks.

What information do you need to quote my switchboard?

For a tight quote we need: single-line diagram showing the incoming feeder and outgoing feeders, schedule of loads with motor sizes and starter types, fault level calculation from the lines company, form of segregation specification, enclosure rating (IP and IK), and platform preference if any. If you do not have all of those yet, send what you have and we will tell you what is missing.

What standards do you build to?

AS/NZS 61439.1:2016 and AS/NZS 61439.2:2016 are the mandatory NZ standards. Plus AS/NZS 3000 wiring rules, ISO 9001:2015 quality management certified annually since 1995, and the Health and Safety at Work Act 2015. Every board ships with the full compliance documentation pack: type-test certificates, project-specific short-circuit calculations, Form-of-segregation verification photos, and routine verification certificates.

Do you maintain switchboards you did not build?

Yes. Our maintenance team services all major LV switchboard platforms across NZ, including older Schneider Prisma, Simotrol, Logstrup, ABB, and other industrial platforms. We do scheduled maintenance, thermographic inspections, ACB retrofits to extend the life of older boards, and emergency response. View our maintenance capability →

Need a Switchboard
Built in NZ?

Specifying an industrial LV switchboard for an NZ project? Send us your single-line diagram, schedule of loads, and fault level. We will come back with a platform recommendation, indicative pricing, and lead time.
