PrismaSeT G / formerly Prisma Plus G

PrismaSeT G.
Prisma Plus G switchboards.

CWS is an accredited Schneider Prisma Plus G builder. We manufacture distribution boards and main switchboards up to 630 A using the Schneider Electric system, with the enclosure, protection and circuits configured for the project.

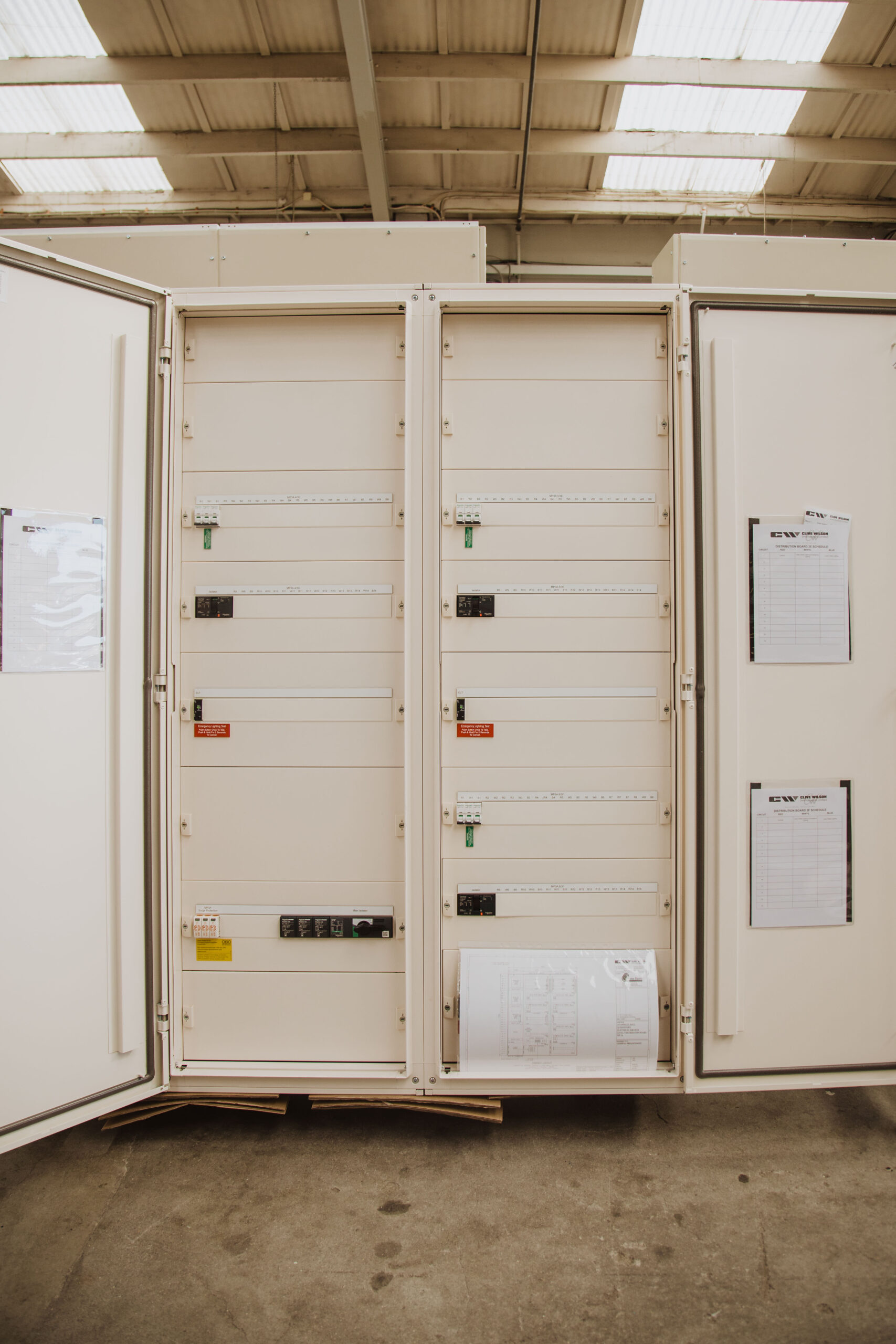

Internal wiring and equipment in a CWS distribution assembly
Commercial distribution

Match the board to the building loads

PrismaSeT G, formerly Prisma Plus G, is our platform for building distribution and MSBs up to 630 A. Wall-mounted and floor-standing arrangements can be selected to suit the circuit schedule, installation space and supported system configuration.

Begin with the incoming supply, outgoing circuits and site environment. Required assembly ratings must be confirmed against the applicable manufacturer information and the completed design.

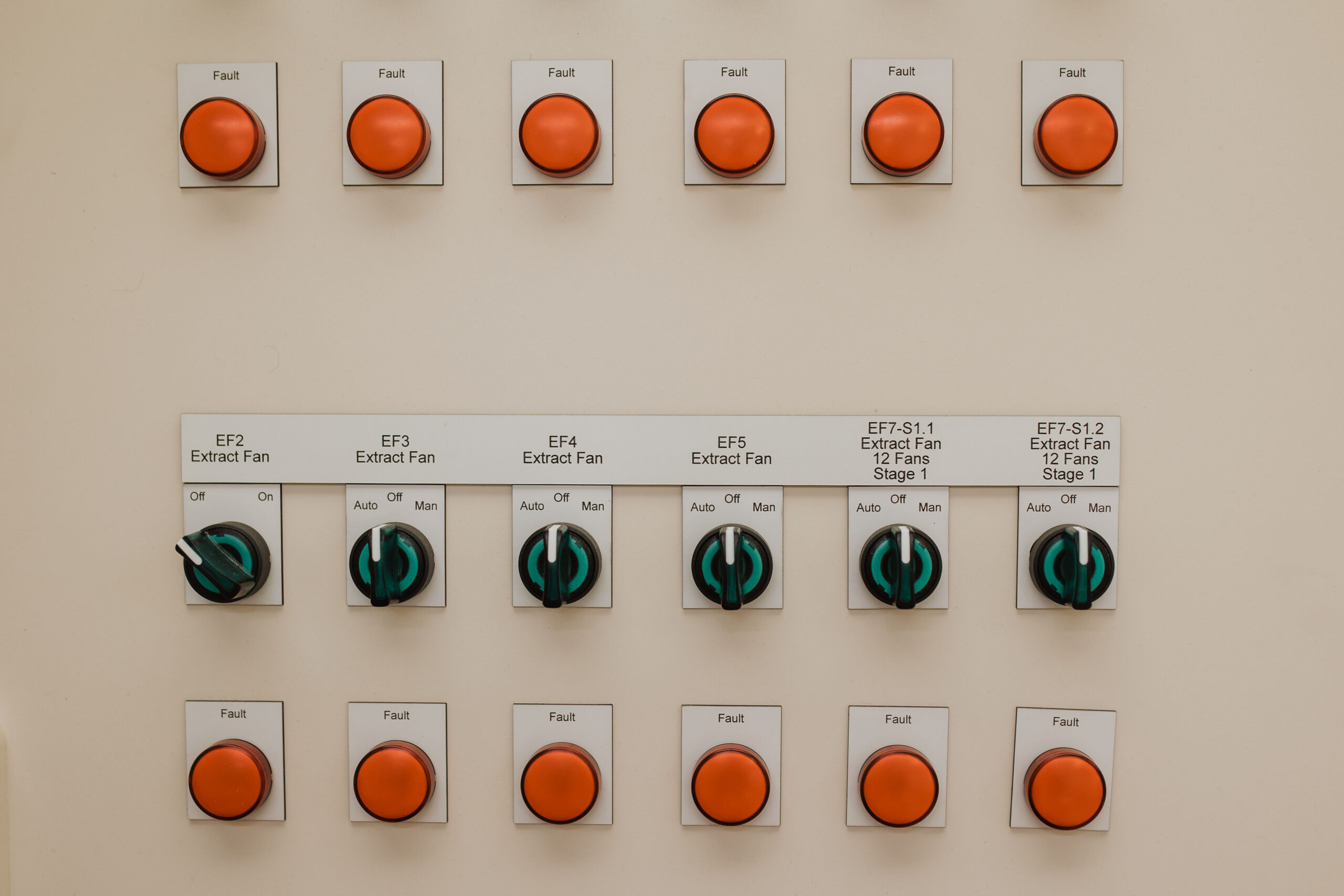

Switchboard circuit equipment and identification
Practical installation

Allow for cables, access and future circuits

Device capacity is only part of the layout. Cable termination space, circuit identification, service access and room for agreed future additions affect how well the board works throughout its life.

Confirm indoor or outdoor exposure, the enclosure protection required and the available wall or floor area. Heat from the installed equipment and the surrounding conditions need to be considered when the assembly is selected.

Protection and documentation

Specify circuit protection, metering and any control interfaces with the project designer. CWS prepares the assembly and testing scope around the agreed requirements, with drawings and circuit identification included in the handover package as specified.

Quote information

Define the distribution requirement

Information for a Prisma Plus G quote
RequirementWhat to include
CircuitsIncoming supply, outgoing circuit schedule, loads and spare capacity.
ProtectionDevice requirements, fault information and coordination requirements.
EnclosureMounting, dimensions, environment and cable entry.
InterfacesMetering, control circuits and communications if required.
HandoverDrawing, labelling, verification and factory-test requirements.

See lighting and power distribution boards for the wider CWS service, or technical resources for available platform documents.

Ratings and configuration

PrismaSeT G capability at a glance.

Use these figures to define the enquiry. They describe the range and do not replace the ratings and verification of the completed CWS assembly.

PrismaSeT G selection guide
ItemCapability and selection notes
Assembly currentUp to 630 A within the supported Schneider Electric system configuration. The completed assembly rating is confirmed for the selected devices, loading and conditions.
MountingWall-mounted and floor-standing enclosure arrangements, selected around the circuit schedule and installation space.
Enclosure protectionThe manufacturer’s PrismaSeT G range includes IP30, IP40, IP41, IP43 and IP55 arrangements. The achieved IP rating depends on the selected enclosure, accessories and completed installation.
Fault ratingConfirm the prospective fault current and required withstand or conditional rating. An incoming breaker’s breaking capacity is not the rating of the complete switchboard.
Internal separationSpecify the required form of separation and terminal arrangement. CWS checks the proposed build against the applicable Schneider configuration and verification information.
Circuit equipmentIncoming and outgoing protection, metering, surge protection and control interfaces selected for the approved circuit schedule.

Manufacturer reference: Schneider Electric PrismaSeT G catalogue, DESW025EN. Discuss the applicable New Zealand configuration and availability with CWS.

Typical applications

Distribution for building loads.

For a new building, coordinate the board schedule with lighting and power distribution and mechanical services requirements. Identify normal and alternative supplies, essential circuits and any metering or BMS interfaces early.

Where an industrial motor schedule or larger main distribution duty needs another arrangement, compare Simotrol and Logstrup. For a healthcare building, our Southern Charity Hospital project shows CWS experience coordinating an MSB and downstream distribution package; it is not presented as a Prisma installation.

Platform questions

PrismaSeT G questions.

Is PrismaSeT G the same name as Prisma Plus G?

PrismaSeT G is Schneider Electric’s current range name. Older drawings, specifications and installed boards may refer to Prisma Plus G. Include the original device and enclosure references for an extension or replacement so compatibility can be checked.

Which buildings suit this platform?

Typical applications include commercial offices, retail, education buildings, healthcare distribution and other building-services loads within the selected assembly rating. The supply arrangement, circuit count and installation conditions determine suitability.

Can a Prisma board be used outdoors?

An IP rating alone does not establish suitability for every outdoor location. Confirm weather exposure, corrosion, condensation, solar heating and the manufacturer’s conditions of use before selecting an enclosure.

Can you extend an existing Prisma Plus G board?

Send the existing drawings, photographs, enclosure references, device schedule and ratings. An extension needs a compatibility, capacity and condition review before new equipment or spare ways can be confirmed.

Start a conversation

Discuss a building distribution board

Send the circuit schedule and project specification. We will review whether Prisma Plus G suits the required capacity, environment and installation.

Printable quote checklist (PDF)Email your checklist, drawings and schedules to estimating@clivewilson.co.nz. Leave unknown items blank.
